Expert Guide On TRIAC Dimming For LED Lights

What Is TRIAC Dimming For LEDs?

A TRIAC, or “Triode for Alternating Current,” is a switch for adjusting the power and brightness. They are also known as phase-cut dimmers and are specifically very compatible with LED lights. A TRIAC is an electrical component with three terminals that can conduct current in either direction when activated. These semiconductor devices, like diodes, can be used as dimming controls for lighting and power controllers for motors.

TRIAC dimmers have a wide range of applications in AC power control solutions. They can toggle high voltages and currents inside an AC waveform. The versatility and precision of TRIAC dimming can increase energy efficiency. Also, there is an abundance of TRIAC dimming drivers on the market today. It gives lighting designers better access to the power of LEDs.

Type Of TRIAC Dimmer For LED Lighting

Type Of TRIAC Dimmer For LED Lighting

There are two types of TRIAC dimmers available for LED lighting–

1. Leading-Edge Dimming

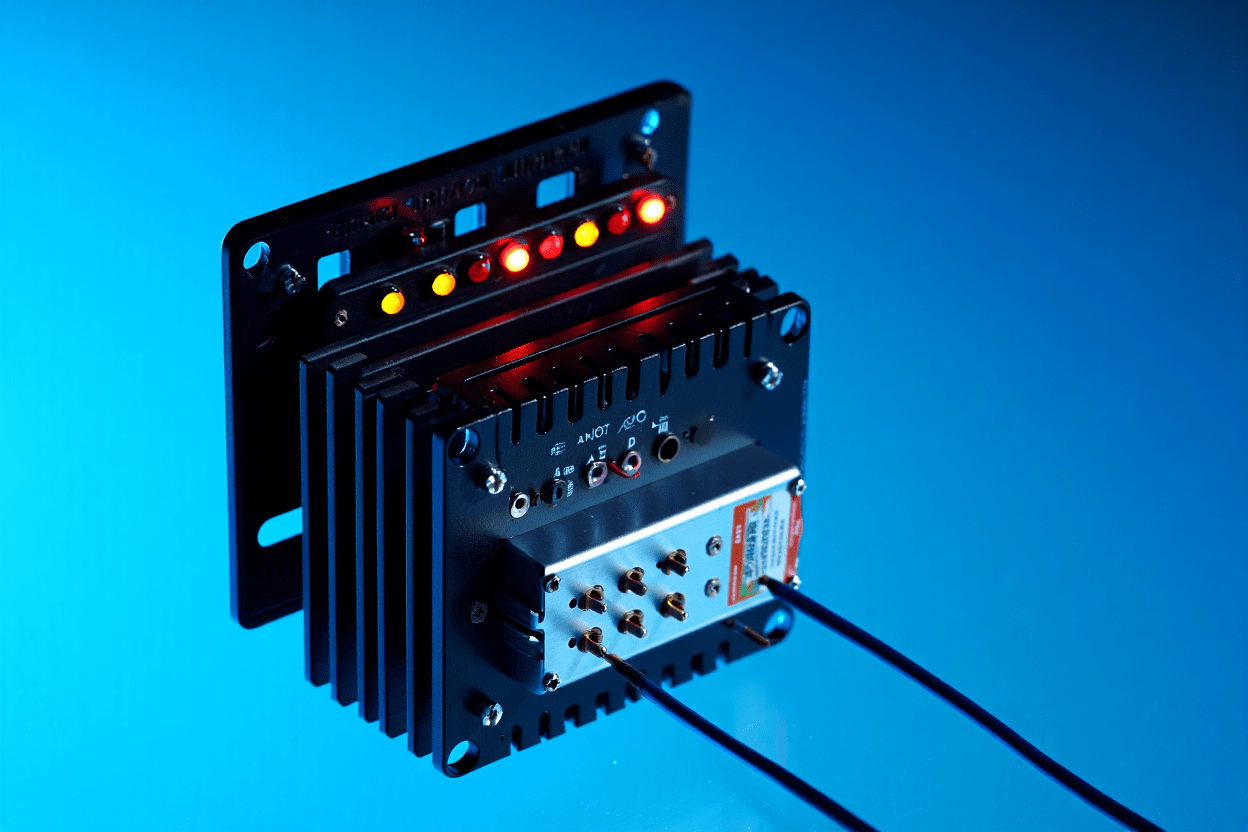

Leading-Edge Dimming

This is the classic TRIAC dimmer design. The dimmer waits after each zero-crossing. Then, it turns on the TRIAC partway through the half-cycle, chopping off the beginning of the waveform.

So, the bulb power turns on late in each cycle, effectively reducing the RMS voltage. Most traditional “dimmer switches” use this. They also work well with inductive or resistive loads like halogen lamps or magnetic transformers.

2. Trailing-Edge Dimming

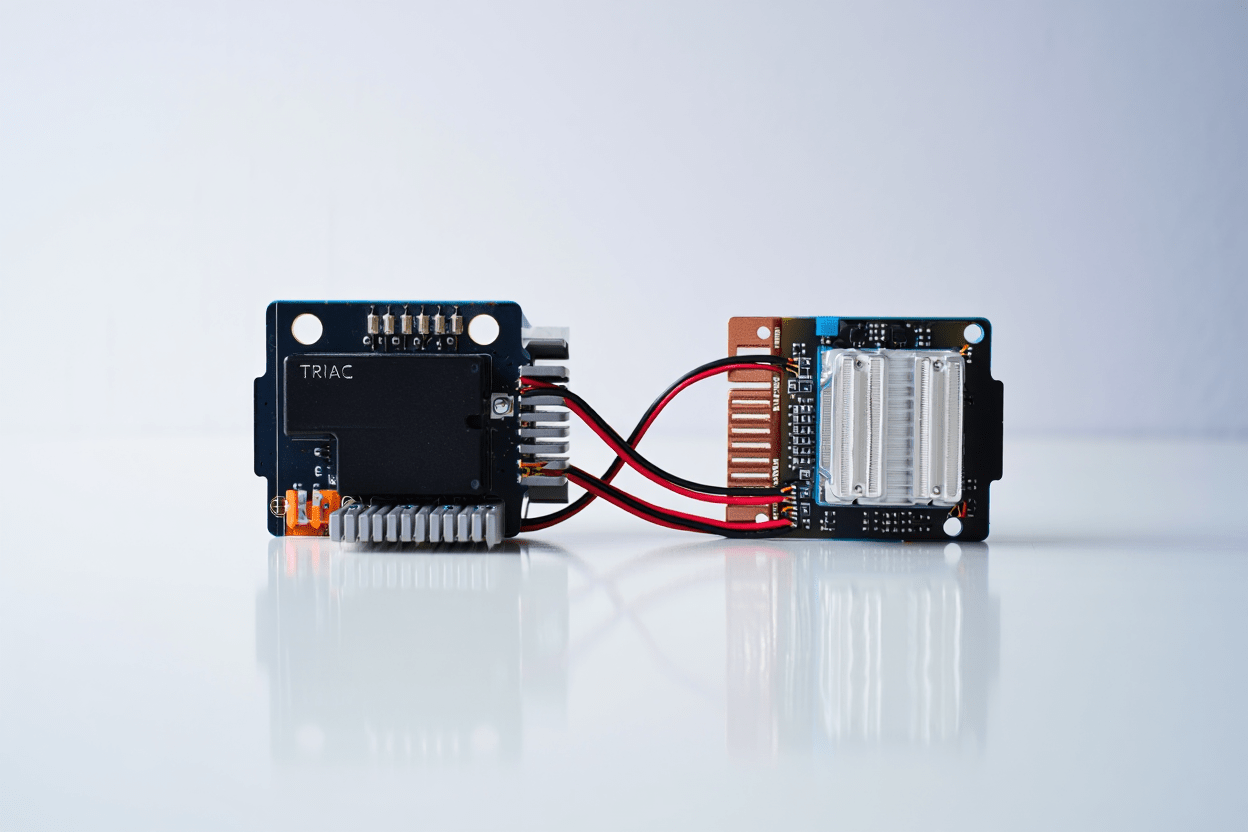

Trailing-Edge Dimming

In this method, the TRIAC is turned on at the start of every half-cycle and then turned off before the next zero-crossing. It chops off the end of the waveform instead of the beginning. Trailing-edge dimmers produce a smoother voltage rise. So they are preferable for electronic loads like LED drivers. They also tend to generate less noise and handle smaller loads without flicker.

Types Of TRIAC Dimmer Switches

Below, let’s see the common types of TRIAC dimmer switches–

01. Single-Pole Switches

Single-pole switches offer the simplest three-wire configuration that includes a hot (live) wire, a neutral, and a ground. These switches also include a single on/off button and a slider or dial to adjust the brightness.

This is the most common shape a TRIAC dimmer can take. However, it can only operate one light fixture from a single location.

02. 3-Way Switches

Three-way switches have a more complex configuration than single-pole switches. They have four wires, such as a hot wire, a ground wire, and two travel wires.

These travelers’ wires are connected to a switch in a different location. This enables the three-way switches to control one or more fixtures from two separate places.

03.  4-Way Switches

Four-way switches are perfect for big environments with several light control points. They allow you to adjust the lights from three separate switches or locations.

However, the four-way switches do not connect directly to the fixture. Instead, you can use them in conjunction with two 3-way switches that serve as a bridge.

04. Multi-Location Switches

Multi-location switches are a complex variant of 4-way switches for modern digital dimming networks. These switches allow you to operate your lighting system from more than three locations.

Also, you can use multi-location switches to create changeable dimming zones. And with these switches, you can have two separate dimming settings active in your space. This way, you can control these dimmers to make them ideal for lighting bigger open-concept rooms.

05. Plug-in Switches

Plug-in switches are external dimming drivers that you can connect to a wall socket without any hardwiring. They function more like an extension cord than a traditional dimmer switch. Plug-in light switches are ideal for those who do not want to deal with the inconvenience of installing a permanent dimmer in their electrical socket.

These provide a portable alternative for TRIAC dimming. However, ensure that the LED lights used in the lamps are dimmable before connecting them to the plug-in switches.

06. Smart Switches

They include a built-in transmitter that links to your smartphone. You can control the light from anywhere using your phone and an internet connection. Furthermore, they support complex functions such as timer settings for your luminaires.

For example, you can use the smartphone app to schedule your house lights to turn on automatically around dusk. Also, you can create turn-on and turn-off time routines using the compatible app on your mobile phone.

How Does The TRIAC Dimming Work For LEDs?

How Does The TRIAC Dimming Work For LEDs

A TRIAC dimmer is connected between the power supply and the LED fixture. The dimmer controls the power sent to the LED. It helps you to brighten or dim the light. It divides the AC voltage into several little segments, each of which is half a sine wave.

Basically, a TRIAC is a three-pin power electronic circuit element capable of alternating current. The three pins are named:

  • Main Terminal 1 (MT1)
  • Main Terminal 2 (MT2)
  • Gate (G)

The internal construction of TRIAC dimming consists of common gate pins and two thyristors placed in reverse parallel. It is capable of accepting current in both directions due to its single-gate design.

Aside from thyristors, fundamental components such as capacitors and potentiometers work together to reduce the light. Let’s see the detailed description of the TRIAC dimming mechanism–

Thyristor Activation

A thyristor is a three-electrode semiconductor that allows two-way (positive and negative AC) current flow between the anode and cathode. However, this is only possible if the third electrode has been charged with electricity. The TRIAC dimmer switch sends a brief burst of electric current to the gate at regular intervals.

As a result, electricity flows through the thyristor in small pulses rather than constantly. If the gate is triggered at the start of a sinusoidal cycle, more electricity will flow into the LED lights with each pulse. In contrast, triggering the gate at the end of the sinusoidal cycle results in less electricity flowing to the LED lights.

Capacitors Charging Cycle

A capacitor regulates the opening and closing of the thyristor’s gate. It preserves electrical energy. They are small electronic devices that store and discharge electrical energy after being fully charged. When it is in charging mode, the gate is closed. This prevents current from reaching the main terminals.

When the capacitor is fully charged, it opens the gate. It helps electricity to pass and light up. The amount of time it takes to charge a capacitor depends on its capacity. Basically, large capacitors have a higher capacity and require more time to charge.

Resistance Tuning With Potentiometer

A TRIAC dimmer does not use a sophisticated digital controller. The gate trigger’s time is controlled by mathematically calculated resistors, potentiometers, and capacitors. The timing of the gate trigger can be controlled using a potentiometer.

Besides, the potentiometer has the form of a knob or dial. When you alter the potentiometer, the TRIAC dimmer’s resistance changes. As a result, the quantity of current flow in the capacitor varies. This, in turn, influences the length of the pulses at the light source.

TRIAC Dimmer Control

The TRIAC difference turns the input voltage from the power source into brief pulses using a potentiometer and a capacitor. Longer pulses increase the flow of electricity and produce a brighter light output.

Again, short pulses reduce the flow of electricity, dimming the light. This way, the TRIAC dimmer allows you to adjust the brightness of the LED illumination.

Advantages Of TRIAC Dimming For LED Lights

TRIAC dimming or LEDs have many benefits, some of them are–

High Voltage Support

TRIAC dimming controllers are ideal for high-voltage electrical applications. Almost every TRIAC device is rated for use at a few hundred volts of power, like 100-240V AC. As a result, they are suitable for both home and business applications.

However, to deal with high voltage while using low-voltage LED lighting, TRIAC dimmers often require additional components, such as an LED driver.

Smooth Dimming Control

The TRIAC dimmer provides precise control over the brightness of the LED lights. You can simply adjust the control knob or potentiometer to dim or brighten the light without any technical knowledge.

To raise the brightness, turn the controller up or rotate it clockwise. Similarly, lowering the knob or spinning it anticlockwise will dim the light.

Solid Reliability

The TRIAC dimmer uses analog technology. So there is no risk of hacking or future compatibility issues. It will also not generate soft water errors or become incompatible with future firmware changes. You can hardwire the dimmer switch into your wall sockets and use it for years without requiring any upgrades or replacements.

Compact Size & Simple Installation

The TRIAC dimmer’s tiny design allows for installation in restricted places. Furthermore, TRIAC dimming systems are simple to install and use without any sophisticated wiring. These dimmers are available as single-unit switches.

Therefore, you can easily integrate them into your existing home wiring. This lowers the entry hurdle for newcomers, so inexperienced users can install them with a little help.

Cost-Effective

TRIAC dimmers are less expensive than other dimming methods. This makes it a popular choice for household, office, and small business applications, as well as retrofits.

The cost of a TRIAC dimmer is mostly determined by its fancy dimmer switch and housing. So, by using a simple switch design, you can save money.

Minimal Heat Loss

Unlike a series resistor, TRIACs dissipate very little energy or  heat when ON. The dimming action just “skips” part of the wave. So, the dimmer remains cool even under lighting loads.

This improves energy efficiency compared to old-style dimmers. It helps to drop voltage linearly, wasting the least power.

Drawbacks Of Using TRIAC Dimming With LED Lights

Along with several advantages, TRIAC has some cons–

Potential Flickering And Humming

The frequent on/off action or fast cycle of TRIAC dimmers can damage the sensitive internal electronic components of LEDs. It causes flickering issues and produces a distinct humming sound. This might be visually distracting, affecting the overall user experience.

Potential Lifespan Reduction

Although TRIAC dimming does not significantly reduce LED lifespan, improper use or compatibility issues can have a negative impact. Also, poor wiring can cause flickering, voltage fluctuations, or excessive heat generation.

It will result in early failure or a shorter lifespan of the LED bulbs. Again, the dimmer’s quick switching function can damage and overheat the LEDs, shortening their lifespan.

Less Precise Dimming Response

TRIAC dimming can sometimes have poorer dimming performance and issues like needing a minimum load. You can see changes in color temperature or flicker at certain levels.

Limited Dimming Control

One of the primary disadvantages of TRIAC dimming for LEDs is the limited range of brightness control. Because they cannot totally turn it off, even at the lowest level.

As a result, a modest current continues to flow. It limits the dimming range and prevents the LEDs from reaching extremely low light levels.

How To Choose The Right TRIAC Dimmer For LEDs?

You can select the right TRIAC dimmer for LEDs by considering factors like–

Bulb Type & Compatibility With LED

Firstly, ensure that the TRIAC dimmers are compatible with LED lights. Also, check that the light must be dimmable. Using a TRIAC dimmer with non-dimmable LED lights reduces the fixture’s lifespan. Furthermore, it will result in flickering and performance concerns.

Load Capacity

Calculate the total wattage of all the LED loads on the circuit. The dimmer should have a working range that covers this. You’ll need a trailing-edge TRIAC dimmer with a low minimum load. For example, a 300W TRIAC dimmer requires a minimum of 30W or more of LED.

If you have low-wattage LEDs, verify that they are above the dimmer’s minimum to avoid flicker. Conversely, do not exceed the maximum: overloading a dimmer can cause overheating and failure.

Dimming Range

TRIAC dimmers have a limited dimming range. Due to incompatibility, the LED can not dim to zero. Check the specifications for both the LED and the TRIAC dimmer to ensure you receive the acceptable dimming range.

Moreover, check if the dimmer has adjustable endpoints or “soft start/stop”. Some dimmers include trims for minimum and maximum levels to avoid dead bands. Others offer multiple dimming curves. Good LED dimmers often offer a 1–100% range.

Features

Some TRIAC dimmers come with advanced features, such as preset scenes or memory functions, that recall the last level when turned off and then on. Others integrate with digital systems like multilocation. Similarly, you can consider faceplate style, knob vs paddle, and whether it fits decor.

Installation Requirements

You must check to see if the wiring in your existing switch box matches the dimmer. Some TRIAC dimmers require a neutral wire, whilst others do not. Furthermore, the installation process for a TRIAC dimmer depends on the light control requirements.

Additionally, the TRIAC dimmer’s size and area are important considerations. Lastly, ensure the electrical box has enough space for the new device and companion units.

Manufacturer And Standards

Choose dimmers from reputable brands and look for compliance with standards (UL/IEC). For example, UL 1472 covers dimming performance. If using 230VAC, buy a dimmer rated for that voltage. Lastly, confirm the dimmer’s type matches the driver; if the driver is unspecified, trailing-edge is often safer for LEDs.

Navigating TRIAC LED Control Systems: Controlling And Wiring Insights

Let’s learn more about the TRIAC LED control system–

Basic Wiring

A TRIAC dimmer has two main terminals, excluding ground: Line (Hot) and Load. Wiring the dimmer helps hot feed from the breaker go into the dimmer, and the dimmer’s output goes to the LED driver’s live input. While, the neutral bypasses the dimmer entirely and connects directly from the supply to the LED driver.

LED Driver Input

Many LED drivers for TRIAC dimming expect a standard 120VAC or 230VAC supply on their L/N terminals. The difference is that the dimmer on the line leg alters the waveform.

Hence, you should connect the dimmer output to the driver’s L terminal and the dimmer input to mains live, with N untouched.

Compatibility DIP Switches

Some TRIAC dimmers or LED drivers have switches or jumpers to set the mode. For example, specific dimmers can toggle between forward-phase and reverse-phase operations via a DIP switch. However, set the dimmer to the correct mode before powering it on.

Avoid Wiring And Installation Mistakes

Don’t incorrectly wire a dimmer into a multi-wire branch circuit. First label the line/load clearly. Also, ensure the dimmer is rated for the circuit voltage.

Always install the dimmer in a grounded metal or plastic box with a proper cover. Lastly, follow the electrical code: turn off the power at the breaker before wiring. If you’re unsure, consult an electrician.

Minimum Load And Parallel Loads

Many TRIAC dimmers need a minimum load to operate properly. The dimmer can not work reliably if your LED load is minimal.

So, you should not mix different lamp types on one dimmer and check the dimmer’s minimum/maximum wattage rating. You can add a dummy resistor or use a different dimmer if a flicker occurs due to a low load.

Industrial Grade Alternatives To TRIAC Dimmer

There are several alternatives available to the TRIAC dimmer–

1. DALI Control

DALI is an international digital lighting control standard (IEC 62386) providing more advanced and flexible LED control. It is best with LED downlights, LED accent lights, and LED linear systems. They provide a wide variety of dimming capabilities that no current dimming technology can match.

As a result, you can use the most recent version of DALI to manage both RGBW and tunable white lighting. Furthermore, dimming blasters that follow DALI standards can readily handle even the most complex color-changing applications. The significant advantages of DALI include–

Individual Addressing And Grouping

You can program each fixture’s response. For example, set different fade times or trigger behaviors using software. A DALI controller can send commands to any light or group of lights in the network.

Two-Way Communication

Devices can report status or failure back to the controller. For instance, a DALI driver can send diagnostics like lamp failures and remaining life. This makes maintenance easier and lighting smarter.

Scene Setting And Reprogramming

You can create lighting “scenes” and change them without rewiring. DALI systems can be reconfigured solely through software.

Robust, Scalable Network

DALI uses a simple two-wire bus (polarity-insensitive) to connect up to 64 devices on a line, or more via architecture. The DALI Alliance highlights that it enables “robust, scalable and flexible lighting networks”.

2. DMX Dimming

DMX stands for “Digital Multiplex Signal”. It is a digital protocol for controlling many light fixtures or channels from a single place. This enables you to remotely control the power, brightness, and color of certain LEDs. DMX is ideal for large-scale systems such as stage lighting and architectural lighting. Here are the notable DMX characteristics:

Entertainment Focus

DMX is unbeatable in theaters, concerts, theme parks, etc. It excels in controlling fixtures that need rapid dynamic effects like moving head lights, color changers. Any lighting device with a DMX interface can be addressed on a “universe” of 512 slots.

High Channel Counts

Complex installations like nightclubs or stadiums can have multiple DMX universes to control thousands of channels. Each DMX signal is daisy-chained to many lights.

Real-Time Control

DMX updates at high frequency, allowing smooth fades, chases, and synchrony. DMX became the primary method for linking lighting consoles to dimmers and “intelligent lights.” You can use it whenever excellent and dynamic control is needed.

Broad Applications

While DMX started in stage lighting, it expanded to uses in non-theatrical interior and architectural lighting, from Christmas to stadium lighting.

Conclusion

Hopefully, you now know the core of TRIAC dimming for LED lights. They can yield smooth, reliable dimming for LEDs. You will need to select the correct curve and dimmer type and ensure that your drivers support it.

With those in place, a TRIAC dimmer will gently vary LED brightness from entirely on to nearly off, with the reliability of a solid-state switch. However, for this, quality LED lighting is an integral factor. To avail of the top-notch LED ightings, you can contact us right now!

FAQs

Can I install a TRIAC dimmer myself?

Yes, if you are comfortable with basic electrical work and local codes. A TRIAC wall dimmer installation is much like a regular switch. Many manufacturers also provide step-by-step wiring guides for installation, which you can follow.

Is TRIAC dimming forward or reverse phase?

Standard TRIAC dimming is forward-phase or leading-edge dimming. The TRIAC turns on later in each half-cycle after the sine wave has already started. Some modern dimmers can be selected for either mode, but a “TRIAC dimmer” usually implies leading-edge control.

Is TRIAC dimming the same as 0–10V?

No. TRIAC dimming is phase-cut (AC-line), whereas 0–10V is an analog DC control method. Also, TRIAC/SCR dimming chops the AC input waveform to the driver. 0–10V dimming sends a separate 0–10V signal to a special driver, which regulates LED current. Plus, TRIAC directly modulates the AC power fed to an AC driver.

Does a TRIAC dimmer need a neutral?

Yes, a TRIAC requires a neutral wire for its internal circuitry to function properly. This neutral line serves as the return path for electrical current.

Is TRIAC compatible with mains (230V) dimming?

Yes, TRIAC dimming is fully compatible with standard line voltages worldwide. The same principle works on 120VAC or 230VAC or any AC mains as long as the triac device and dimmer components are rated for that voltage.
