Comparing DMX and DALI Lighting Systems: Which Is Right for You?

Table of Contents

Intelligent lighting control lets you modify light intensity, quality, and properties in a given space. A dimmer serves as a prime example of this technology.

The two predominant dimming controls for outdoor lighting fixtures are DMX (Digital Multiplexing) and DALI (Digital Addressable Lighting Interface). These systems utilize automated mechanisms to conserve energy, but each has distinct features.

Eager to dive deeper? Let’s delve into the specifics of these controls.

DMX vs DALI 1

What is DALI?

DALI, or “Digital Addressable Lighting Interface,” is a protocol for managing lighting control networks within building automation systems. Recognized globally, this trademarked standard simplifies the integration of LED devices from multiple manufacturers, such as dimmable ballasts, modules, power sources, and controllers.

Originating as an enhancement to the 0-10V lighting control and building on Tridonic’s DSI protocol, DALI offers bidirectional communication. This means a control system can send and receive information from each LED driver or device group. In contrast, the 0-10V system only facilitates one-way communication.

With the DALI protocol, LED control devices receive the commands and communication channels essential for directing building lighting. Its adaptability makes it suitable for both primary and intricate lighting setups.

What is DMX?

DMX512 is a lighting control protocol primarily for stage lights, though it can also control other devices. “Digital Multiplex” reveals its operation through its name. Instead of typical addressing, DMX packets determine which device should receive the data based on their position or slot in the sequence.

Practically speaking, setting it up is simple. It uses 5-pin XLR connectors for electrical connections, with data transmitted over a balanced line pair (referenced to 0 V). The data is dispatched via a serial port at 250,000 bps, adhering to the RS-485 electrical interface standard.

The “512” in “DMX512” indicates the maximum number of data bytes a packet can have—512 bytes, to be precise (though 513 are sent, the first one isn’t utilized). One DMX packet can encapsulate all the data for a DMX universe.

If you’re controlling a single-color light fixture, like white, with basic dimming, one byte can modulate its brightness, offering a range between off (zero) and fully lit (255). This means one DMX universe can govern up to 512 such devices. Three data bytes are required for RGB fixtures that utilize red, green, and blue lights, limiting the number of RGB devices to 170 in a DMX universe.

Uses of DMX and DALI light controls

Coming to lighting controls for High Mast Pole, you must first know what a high mast pole is and its uses if you don’t know it yet. High mast poles are tall poles with a cluster of fitted lights facing downwards, often used on highways, Airports, stadiums, fields, etc. High mast lighting is used where constant sunshine is required continuously. DMX and DALI, lighting control systems, can be implemented for tall mast poles. But which one you will need will depend on the type of use.

Let us analyze different situations where high mast poles are used, and the type of lighting control generally preferred.

a. Highways

Highways are long stretches of roads that can continue for miles and require constant light throughout. Such lighting of high mast poles is in proper alignment at regular intervals. Under such circumstances, DMX lighting control is preferred over DALI. It helps in maintaining the amount of light and is easy to control.

b. Tennis Court

Lawn Tennis requires highly focused lights on the entire court but not focus lamps as it can distract players, and the viewers won’t be able to see the sport. Therefore, high mast poles are used in tennis courts. Since the court is not very big and the light requirement has to be controlled individually, DALI-based lighting control for high mast poles is perfect. The DALI system will help prevent the light required on each side of the net, which is necessary at the center since both will differ. Also, it will help to easily control the light on the stand for the views to get the perfect idea of the game.

c. Sports fields or Stadium

In stadiums where athletic events like hockey, soccer, running, splinter, javelin or discus through, basketball, etc., are conducted, lighting plays a significant role for players and viewers. Low-lying lights cannot be used since they will hinder the game or sport and won’t be used much. Therefore, high mast pole lighting is more suitable. Different lighting controls will be needed depending on the game or sport being conducted. Some stadiums have well-structured lighting control that consists of a DMX light control on the field and DALI control off the field, while others have a mix of both through the area and the stand.

d. Commercial Areas

Commercial areas like Airports or Railway stations require high mast pole lights for better visibility for vehicles and people traveling. Both lighting control systems can be used simultaneously at such places. For instance, constant light is needed at the airport runway that focuses on the airstrip itself. Therefore, DMX light control panels can be effectively used here. Contrary to this, at airport buildings and hangers, different amounts of controlled lights are needed, suitable to the nature of work being done there; in such cases, a DALI-based individually controlled lighting system will be more helpful.

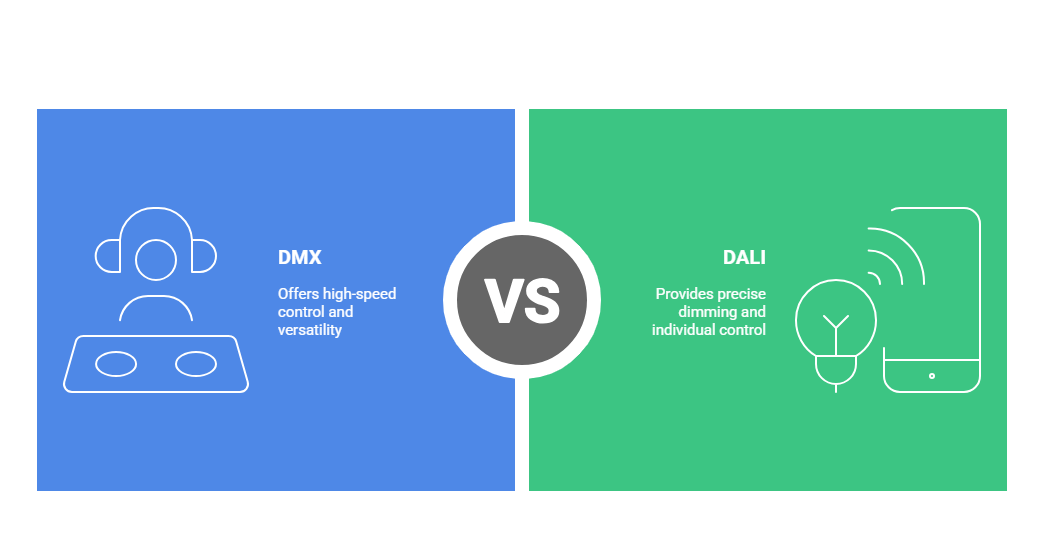

Comparing DMX and DALI: Similarities and Differences

DMX and DALI, while distinct, share specific characteristics that make them valuable for varied scenarios.

Light Control Mechanisms

Both systems require control panels to manage the electricity among groups of light fixtures. DALI allows users to control fading, whereas DMX has a controller that relays data back to the central unit. These panels can perform numerous functions, including color adjustments and fading.

For DMX specifically, RS422 or RS485 controllers cater to unique interface controls.

Operational Range

Despite DMX and DALI utilizing different wiring systems, their operational range is similar. Both methods can connect lighting fixtures to the primary control up to 300 meters away. Consequently, the central controller’s positioning is crucial. The institutions must remain within a 300-meter radius. For context, even modern super domes measure roughly 210 feet across, ensuring coverage in every section.

High Mast Lighting

Both systems can operate lights mounted on tall masts. However, the speed of operation might vary due to the wiring differences. For high mast lighting, the DALI system necessitates two fixtures for each control unit, while DMX requires a separate interface controller for every bank of lights.

Auxiliary Stadium Lights

These lights are connected to those in stands and other parts of a stadium. For example, a fade control might be adjusted to a level that permits safe movement up and down staircases. A significant event, like a team scoring, might involve brightening the house lights to enhance the celebration.

Differences between DMX and DALI

Though DMX and DALI have similarities, they also possess unique differences that influence their suitability for specific applications. Some of these differences are detailed in the subsequent table.

 DMXDALI
SpeedFast speed control systemSlow speed control system
Number of connectionsCan have a maximum of 512 connectionsCan have a maximum of 64 connections
Type of controlCentralized control systemDecentralized control system
Color controlUsing the specialized RGB-LED, you can handle color control using DMX It does not support color change; only fading of the lights
Cable requirementWith a maximum of 300m coverage, it requires a Cat-5 cable requirement which is also attributed to its fast speedsStill, with a maximum of 300m coverage, it uses a two-wire connection setup
Automatic requirementCannot perform automatic addressingCan perform automatic addressing
Dimming controlEasy to useA bit complex and might require some training before use

1. Color Customization

  • DMX: Offers the ability to change colors. An LED bulb that changes colors is necessary, with the RGB-LED being the top choice. Lights can illuminate both the audience and the playing field.
  • DALI: Only functions as a fader and cannot modify light colors.

2. Response Time

  • DMX: Features rapid feedback, providing real-time information. The quick signal transmission ensures immediate light adjustments.
  • DALI: Possesses a delay of up to 2 seconds due to its two-wire setup.

3. Dimming Capabilities

  • DALI: Has a straightforward dimming system with a slider and an on/off switch. Features a warning light for malfunctioning bulbs.
  • DMX: Offers similar dimming options alongside additional effects and time fades. Lacks DALI’s warning light but generally offers more versatile dimming capabilities.

4. Controller Design

  • DALI: Appears as a slide controller—a black box with slide controls and an on/off switch.
  • DMX: Sports a more complex panel with slide controls, preset buttons, and color customization capabilities. Enables the creation of varied light patterns and effects.

5. Lighting Capacity

  • DALI: Supports up to 64 individual lights. Best suited for both on-field and off-field lighting.
  • DMX: Manages up to 512 individual lights or fixtures. Its design is tailored for creating dynamic visual effects, especially during sporting events.

6. Malfunction Alerts

  • DALI: Features an immediate warning light if a light bank fails or malfunctions. Dimmed LEDs might indicate controller issues.
  • DMX: Offers real-time system feedback, notifying if lights are responsive.

7. Wiring Structure

  • DMX: Utilizes a CAT-5 cable for swift and comprehensible data transfer. The control panel facilitates easy lighting adjustments.
  • DALI: Operates with two wires, which results in slower signal transmission.

8. Effects and Entertainment

  • DMX: Stands out with its capacity to craft vibrant effects. When paired with color-changing LEDs, it can transform events with high-intensity lighting synced with music, enhancing the overall experience.

Comparing DMX and DALI Lighting Systems: Key Considerations

Setup Duration

Both DMX and DALI systems require a skilled electrician for installation. The central controller should be positioned no more than 300 meters from the wiring location. This setup includes integrating a fader control to ensure the smooth dimming of LED lights. For DMX systems, the CAT-5 wiring needs specific connectors. Properly linking all lights for optimal functioning is time-consuming.

Choice of Color-Changing Lights

With the DMX system, LED lights can change colors. However, the Stadium has to determine the type of RGB-LED lights, spotlights, floodlights, or a combination. The DMX system can accommodate up to 170 fixtures (3 channels for each RGB bulb), offering ample scalability. By blending three colors, these lights can create any desired shade. It’s important to note that sports lights have a distinct light temperature (measured in Kelvin) that remains unaltered.

Wiring Complexity

Any seasoned stadium electrician knows that wiring often demands double the initially anticipated amount. Before beginning the wiring process, each light needs an inspection to verify its proper connectivity. This phase usually consumes the most setup time. The DALI system requires two cables to connect each light fixture, adding to the setup duration.

Long-Term Lighting Costs

Investing in sports lighting is a long-haul commitment, with LED lighting offering a favorable return on investment over an extended period. While the initial outlay for LED lights may seem steep given their potential two-decade lifespan, they prove cost-effective in the long run. Comparatively, the construction cost of a stadium exceeds its lifespan. LED sports lights underscore their value by delivering energy savings of 75%–85%.

Conclusion

As technology advances, the systems designed for lighting control have significantly improved. DMX and DALI stand out as frontrunners in this space. Both these platforms are compatible with a majority of LED lights. It’s crucial to align your selection with your intended objectives and ensure that your lighting project aligns with the capabilities of the chosen control system. The cost implications of the setup should also be evaluated. Consultation with a lighting specialist can guide you to the most suitable choice between DMX and DALI. Additionally, integrating both controllers into one system is feasible.
