Complete Guide to LED Controllers

Table of Contents

LED stripes and suitable intelligent LED controllers can transform your interior and exterior lighting ambiance. Controller

LED controllers are devices designed to facilitate the control of lighting effects for an LED strip. However, it’s crucial to realize that not all controllers fit every LED stripe. Various LED stripes necessitate specific controller types to adjust or modify their lighting. Before purchasing, you must familiarize yourself with the different controller types, their functionalities, and how to connect them.

This guide delves deep into LED controllers, their different categories, troubleshooting techniques, and more. Dive in to light up your world in innovative ways!

Understanding the LED Controller

When you purchase an LED strip light, the excitement to personalize it to your preference is palpable. An LED controller becomes an indispensable purchase to achieve varying lighting effects and fully utilize the potential of your LED strips.

So, what exactly is an LED controller? Simply put, it’s a specialized chip-processed device that operates as the command center for your LED strips. With this device, you can manipulate your lights’ intensity, hue, and patterns.

One standout feature of the LED controller is its compatibility with wireless or Bluetooth controls, allowing seamless adjustments. Whether dimming the light, toggling it on or off, or altering the light color, an LED controller makes these operations smooth and easy. This makes it crucial for maneuvering and experimenting with multicolor LED strips.

Functions of an LED Controller

Primarily, LED controllers act as color mixologists for your LED strips. By blending different colors, they produce a variety of shades. For instance, an LED controller combines the red and blue lights from RGB strips to achieve a purple hue. By mixing red and green, it can create a yellow shade. This ability to produce an array of colors from an RGB LED strip enhances the versatility of an LED controller.

Furthermore, for those with dim-to-warm or tunable white LED strips, the right LED controller can tweak the light’s color temperature, offering a range of white shades.

What sets the LED controller apart even further is its provision of diverse lighting patterns – whether it’s flash, blend, smooth, or other modes. The DIY color creation feature elevates your lighting experience to unparalleled heights.

Advantages of an LED Controller

Utilizing an LED controller to modify the hues of your LED strips is a brilliant move, especially for event hosting or enhancing an understated home. Each LED controller boasts these features:

Brightness Control

Alter the intensity of your lights with ease. This feature ensures you can adjust the luminosity, allowing for a dim ambiance for those nights when you desire a more tranquil setting in your space.

Diverse Color Palette

An LED controller offers a range of preset colors. Discover multiple shades of red, blue, and green on the controller. Moreover, the DIY color blending option is for those who want a unique touch.

Hassle-Free Color Transition

Shifting between colors is a breeze with the LED controller. A simple button press on the remote instantly transforms your room’s atmosphere. The controller has varied lighting patterns like flash, smooth, and fade.

Personalized Hue Creation

With the LED controller’s multicolor feature, blend red, green, blue, and occasionally white to achieve your preferred shade. There’s also a “DIY” option, allowing you to craft a color that matches your style, whether vibrant and attention-grabbing or soft and soothing. Customize your illumination based on your mood and setting.

Varieties & Characteristics of LED Controllers

There’s a variety of LED controllers available, each with its unique functionalities and constraints. If you’re considering buying a controller for your LED strips, familiarize yourself with these categories:

Infrared (IR) LED Controller

Represented by the term “Infrared Radiation,” this controller is a popular choice for home usage due to its affordability and ease of operation.

ProsCons
Not subject to electromagnetic interferenceLow-costing Short control distanceDevices that don’t meet the exact requirements cannot receive signals from them.

Radiofrequency (RF) LED Controller

As the name implies, it uses radiofrequency to bridge the connection between devices. Typically, it boasts a moderate range of connectivity.

ProsCons
Best for long-distance commutingSignals can penetrate objects and wallsNo face-to-face approach to light is required.Bit pricey

WiFi LED Controller

As suggested by its title, it operates using WiFi signals to establish a link to its transmitter. Whether it’s a smartphone, a remote, or a wireless gadget, this controller allows for effortless connection. It also offers the broadest feature set among its counterparts.

ProsCons
Low networking capacity limited expansion, primarily used in homeLow networking capacity, little development, used mainly in home

Bluetooth LED Controller

This controller uses Bluetooth signals to bridge the sender and the device. One of its significant advantages is its ability to operate without a network, making it an excellent alternative in areas without connectivity.

ProsCons
Easy installation, good user experience, low power consumption, compatible with smartphone APPAllow voice ControlLow costIncompatible protocols between different devicesLimited control distance

0/1-10V LED Controller

Experience full touch functionality with the RGBW 0-10V LED controller. Easily adjust colors, control brightness, and select from various styles and effects for each RGBW.

ProsCons
Reduces electricity useNo additional switch is required suitable for multi-purpose lighting  Not compatible with the driver

DMX LED Controller

The DMX controller, or Digital Multiplex, is a prevalent digital control system in the lighting industry. Manufacturers widely adopt it for controlling tables and projectors, bridging the device and its command source.

ProsCons
Operates at low voltage, allows light customizationIndependent control between light sectionsVersatile lighting options Suitable for controlling larger light installation Can sync with the music Requires more cablesIncreased setup time with increased wiringExpensive

DALI RGB Controller

The “DALI RGB controller” stands for Digital Addressable Lighting Interface. This two-way communication system is ideal in professional environments where multiple lighting fixtures converge to a single light source.

ProsCons
Enables quick and accurate controls installation Reduces maintenance costDay-light sensing option  Expensive

Which LED Controller is the Best?

An LED controller, resembling a remote, manages LED lights. These controllers can be segmented based on their transmission methods, such as Bluetooth, IR, WiFi, RF, ZigBee, DALI, and DMX.

From an intelligent technology perspective, the key LED controllers are WiFi, Bluetooth, and Zigbee.

However, if one had to pinpoint the most effective, it would be a close contest between WiFi and Bluetooth. Bluetooth LED controllers edge ahead regarding energy efficiency and cost-effectiveness, making them perfect for lighting control in smaller spaces like bedrooms. If budget-friendly choices are a priority, Bluetooth controllers are a prime option.

Conversely, WiFi LED controllers boast rapid transmission speeds and can control LED strips over extended distances compared to Bluetooth. I’d lean towards WiFi controllers, but the Bluetooth version remains a viable alternative for those conscious of cost.

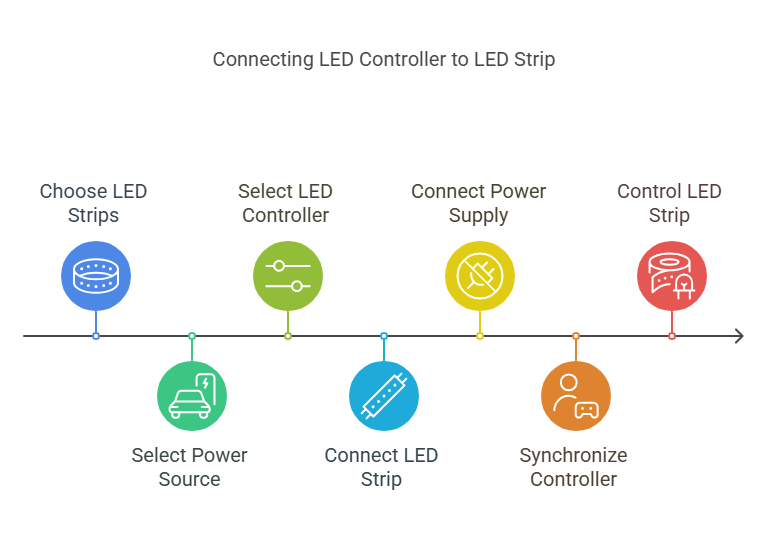

Connecting an LED Controller to an LED Strip: A Guide

Integrating an LED strip controller is vital for advanced, color-altering LED lighting setups. Depending on the controller and strip type, users can modify brightness, alter colors, adjust the temperature, schedule timers, toggle the power, and customize colors.

LED strip controllers come in several varieties like RGB, RGB+W, RGB+CCT, and single color. To operate the strip, connect the power supply and LED strip to the controller and use a remote or another device to interface with the controller.

Here’s a step-by-step guide:

  1. Choose your desired LED strips. Then, select an appropriate power source and LED controller. Ensure the DC power source matches the required voltage for the controller.
  2. When connecting the LED strip to the controller, observe the labels on the strip to wire it accurately.
  3. Remember to align the R-RED, G-GREEN, and B-BLUE with their corresponding terminals on the controller.
  4. Connect the controller’s V-positive terminal to the strip’s V-positive.
  5. To secure the wires, unscrew each terminal on the controller. Attach the cables, ensuring they touch the terminals directly, not the insulation.
  6. Connect the power supply to the controller, subsequently powering the strip.
  7. To synchronize the controller with the LED strip, press the designated button within three seconds of powering up the LED strip. Once paired, you’re set to control the strip via the remote.

For a visual guide on connecting LED strips and controllers, consider online tutorials or YouTube videos for comprehensive instructions.

Pairing an LED Remote with an LED Controller

Follow the steps below to connect an LED remote to its controller. However, methods may vary based on the manufacturer and number of lights to be paired:

  1. Activate the LED controller settings by pressing any button. Depending on the brand, this step might differ.
  2. Once activated, press a number key until the lights flash red. This indicates both the remote and controller are synchronized.
  3. Once paired, you can reset the LED controller to its original color.

Are All LED Controllers Identical?

LED controllers are not all the same. Their compatibility with remotes often hinges on the LED strip brand. While some brands may offer specific remotes for their products, others may be more versatile.

Specific LED strips can be linked together, eliminating the need for multiple controllers. Reputable brand lights typically work best with their proprietary remotes. In some cases, a single remote can control various strip lights.

There are LED controllers specifically for RGB light strips with preset lighting modes. Others might offer features like dimming or simultaneous multi-light control. Additionally, RF controllers can manage RGB LED strips from distances up to 20 meters. Both analog and digital controllers and repeaters compatible with the primary power source are also available.

Setting Up an LED Controller

Setting up an LED controller can be achieved in these steps:

  1. Identify the ideal location, preferably near an electrical source like an outlet.
  2. Ensure easy access to the controller for setting adjustments, avoiding obstructions or high placements.
  3. Route the required wire from the power source to the controller, possibly through walls, ceilings, or under carpets.
  4. Before wire installations within walls, it’s critical to consult local building regulations.
  5. For precise cable connections, consider consulting an expert.
  6. After wiring, connect the controller to the power and conduct a test.
  7. Ensure all connections are secure and functional.

With this guide, your LED controller should be operational in no time!

Customizing Colors Using an LED Controller

Inject life and uniqueness into your space with LED controllers, which can be user-friendly if you have the right equipment:

  1. Decide on the ideal controller based on your lighting system and desired functionalities. Research thoroughly to find a perfect match.
  2. Follow the user manual to connect your lighting system to the LED controller.
  3. Navigate through the settings. While options may vary, most controllers offer fundamental customizations like color themes and brightness adjustments.
  4. Use a color wheel or preset color options to define color and brightness for each channel.
  5. After personalizing, run a test and tweak as necessary to attain the perfect ambiance.

With these steps, you’re set to personalize the colors of your lighting system seamlessly!

Key Considerations When Installing LED Controllers

Before integrating LED controllers into your home or business, keep these crucial aspects in mind:

Adequate Ventilation

Choose a location for the LED controller that offers sufficient airflow. The area should be adequately ventilated to ensure efficient heat dissipation. Always provide abundant fresh air to counteract any heat the controller generates.

Consider adding auxiliary cooling mechanisms, such as fans, if necessary. It’s also vital to keep flammable items away from the controller to prevent potential fire hazards due to excessive heat. Before starting the installation, review the manufacturer’s guidelines. If there are any concerns about ventilation requirements, adhere to their recommendations.

Ensure a Compatible Power Supply

Please verify that the power supply for the LED controllers is accurate and they operate as intended. The power source must align with the LED controller’s voltage and current requirements.

Moreover, confirming that the wattage rating accommodates the total number of managed LEDs is vital. If unsure, consult an expert to help you pick the proper power supply.

Safe Electrical Wiring Practices

Ensure all electrical connections are tightly fastened and insulated during the LED controller wiring process. This measure minimizes risks associated with electric shocks or fires from faulty wiring. Constantly scrutinize the wiring before connecting the controller to its power source.

If you encounter any insecure connections or exposed wires, refrain from using the controller. Instead, seek assistance from a qualified professional.

LED Controller Troubleshooting Guide

Experiencing issues with your LED controller? Here are some common problems and solutions:

1. LED Light Flickering

  • Examine the power source. A failing power source might cause flickering.
  • Inspect the circuit board connections, ensuring they’re tight, and components are securely attached.
  • If the issue persists, a faulty component or poor wiring could be the cause. Professional assistance may be required.

2. Pin Connection Issues

  • Inspect the pins on your LED controller and make sure they aren’t damaged.
  • Make sure the pins are securely in place. A dab of solder can fix loose nails.
  • Check your wires for wear; replace any damaged cables.

3. Unreliable Connection at Cutpoints

  • Examine the connections, ensuring cables are secure and free of corrosion.
  • Confirm your power source is delivering the correct voltage and power.
  • If problems persist, inspect controller components for defects.

4. Insufficient Voltage from Main Power Supply

  • Utilize a regulated power supply for consistent voltage output.
  • Introduce a capacitor between the power source and the LED controller to stabilize the voltage.

5. Communication Issues with the Controller

  • Ensure the controller and LED lights are correctly connected.
  • Examine and secure all wiring.
  • Restart the controller. If issues continue, consider a factory reset.

6. External Radio Interference

  • Use shielded cables to minimize interference.
  • Ensure all wires are tightly secured.
  • An EMI filter can be added to filter out unwanted frequencies.

7. Faulty Power Supply

  • Inspect for any misconnections in the power supply.
  • If a blown fuse is suspected, replace it.

8. Voltage Conversion Concerns

  • Voltage regulators are the primary solution for maintaining voltage levels.
  • A DC-DC converter can adjust the input voltage if needed.
  • Auto-transformers offer flexible voltage conversion options.

9. Overwhelming Brightness

  • Utilize built-in dimmer settings if available.
  • Consider integrating a dimming circuit to achieve the desired brightness level if there’s no built-in dimmer.

Always ensure safety precautions are observed when troubleshooting electrical components. If in doubt, seek expert guidance.
